Yantai Jinpeng Mining Machinery CO., LTD
Professional mineral processing design, equipment production,installation and conmissioning institue.
Skype:tiffany860728 TEL:86-535-3020703 86-13606388717
Gold CIL plant design

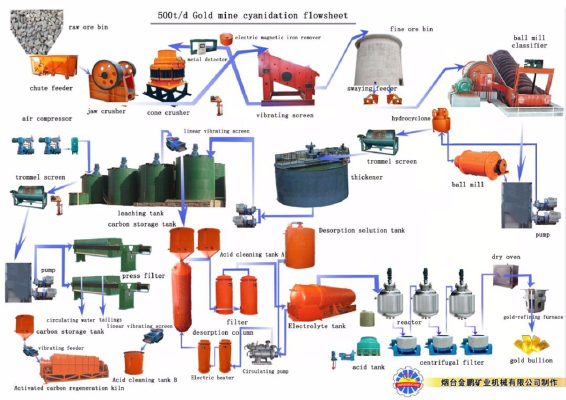

All Slime Cyanidation Carbon-in-leaching Gold Extraction and Smelting Technology (CIL Plant) is a gold-extraction technique in which several major processes are involved. The gold ore is first ground to ore pulp (particles of -200 mesh takes up over 90-95% of the total) which will go through cyanide leaching, and then the soluble gold-bearing minerals in the pulp are directly adsorbed by the activated carbon. Finally, by carbon desorption and electrical winning gold mud is produced. Seven sessions constitute this technique: raw materials preparation, agitation and cyanidation leaching, countercurrent absorption with activated carbon, desorption and electrical winning of gold-bearing carbon, melting and casting following separation and purification of gold mud, reactivation of active carbon and disposal of cyanide-polluted sewage.
This technology features mature technical skills, high recovery ratio and the final goods are gold bullions.
Our company can provide one package service including beneficiation test of gold ore, design of CIL Plant, mining machinery manufacturing, installation and commission, personnel training, dressing operation and management. We have successfully run a large number of large-scale projects both at home and abroad, and accumulated rich experience in this field. Overseas offices have been set up in Malaysia, Sudan,etc .
Provide ore dressing experiment,process design and onsite engineering service.
Welcome to visit our lab, design institute and factory!
