Yantai Jinpeng Mining Machinery CO., LTD
Professional mineral processing design, equipment production,installation and conmissioning institue.

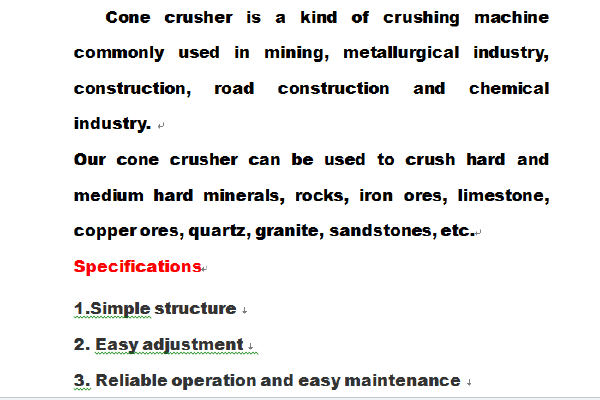

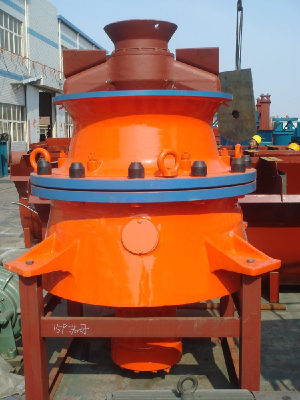

Cone crusher is a kind of crushing machine commonly used in mining, metallurgical industry, construction, road construction and chemical industry.
Our cone crusher can be used to crush hard and medium hard minerals, rocks, iron ores, limestone, copper ores, quartz, granite, sandstones, etc.
Specifications
1.Simple structure
2. Easy adjustment
3. Reliable operation and easy maintenance
4.Save energy
Working principles
1. When cone crusher is working, motor drives the eccentric sleeve to rotate. The eccentric sleeve drives the transmission shaft and cone part to make swing movement. When they swing to the extent that the surface of the crushing wall is close to the roll mortar wall, the rocks and ores are pressed and crushed.
2. Joint between supporting sleeve and frame is compressed by spring. When metal block and other materials that can no be crushed fall into the crusher, spring will be out of sharp and discharge the objects.
3. When the materials that can not be crushed pass through the crushing chamber or the machine overloads, the spring safety system makes the cone discharging hole become larger. When objects are discharged from crushing chamber, discharging hole will automatically reset. Cone crusher resumes normal operations.
4. The surface of crushing chamber is covered with wear-resisting high manganese steel lining plate. Size of discharging hole can be adjusted hydraulically or manually.
Characteristics
1. Our cone crusher has the characteristics of large breaking force, high efficiency, high crushing capacity, low operating cost and long service life. It is convenient to operate and is economical.
2. The crushed materials are of equal size, thus reducing circulating load.
3. Large and medium-sized crushers adopt hydraulic chamber-cleaning systems, which will help reduce the down time.
4. Cone crushers with different chambers are available, to meet our customers' requirements.
5. Grease seal can effectively avoid the blockage of water feeding system and drainage system, as well as mixing of water and oil.
6. As the overload protection device, spring safety device allows foreign matter and iron pieces to pass through the crushing chamber without jeopardizing machines.
Technical parameters
Type Diameter of cone Max. feeding size Width of discharging hole Crushing capacity Motor power (kw) Swing frequency of main shaft Weight (t) Dimension PYB 600 600 65 12-25 40 30 356 5 2234×1370×1675 PYD 35 3-13 12-23 5.5 2234×1370×1675 PYB 900 900 115 15-50 50-90 55 333 11.2 2692×1640×2350 PYZ 60 5-20 20-65 11.2 2692×1640×2350 PYD 50 3-13 15-50 11.3 2692×1640×2350 PYB 1200 1200 145 20-50 110-168 110 300 24.7 2790×1878×2844 PYZ 100 8-25 42-135 25 2790×1878×2844 PYD 50 3-15 18-105 25.3 2790×1878×2844 PYB 1750 1750 215 25-50 280-480 160 245 50.3 3910×2894×3809 PYZ 185 10-30 115-320 50.3 3910×2894×3809 PYD 85 5-13 75-230 50.2 3910×2894×3809 PYB 2200 2200 300 30-60 59-1000 280-260 220 80 4622×3302×4470 PYZ 230 10-30 200-580 80 4622×3302×4470 PYD 100 5-15 120-340 81.4 4622×3302×4
(L× W× H)
